BP84FLIP195 - Brass Premium Flip Bolt 195mm

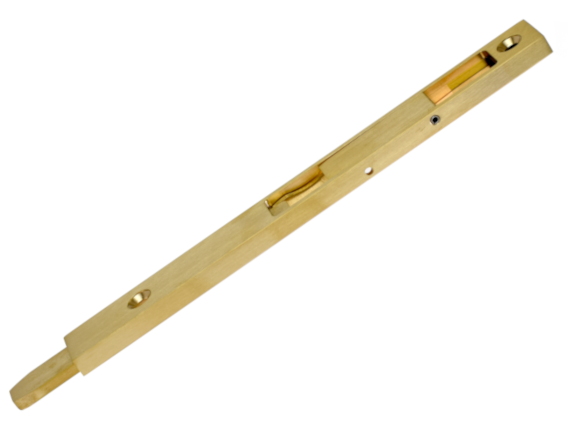

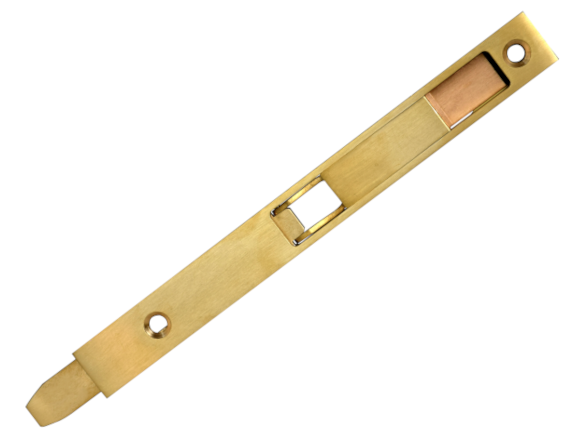

A Brass Premium flip bolt 195mm

• A Concealed and slim-line bolt which sits neatly inside the profile section and often used on double opening Doors and Windows
• Can also be used for face fix applications with the keep accessories supplied
• For use on windows and doors
• Available in 3 sizes 195mm, 320mm and 450mm
• The bolts throw is 25mm and withdraws into the case when opened
• The maximum height of the bolts pull in the open position is approximately 14mm
• Accessories include a concealed wedge and top hat wedge for face fix inward opening doors and windows
• B85PLT floor mounted keep can be ordered separately, mounts flush to the floor where a door threshold is not used
• Available in several finishes
• Suitable for M5 countersink machine screws, which are available separately on request
• Complimentary window handles, peg stays, door handles, and escutcheons
